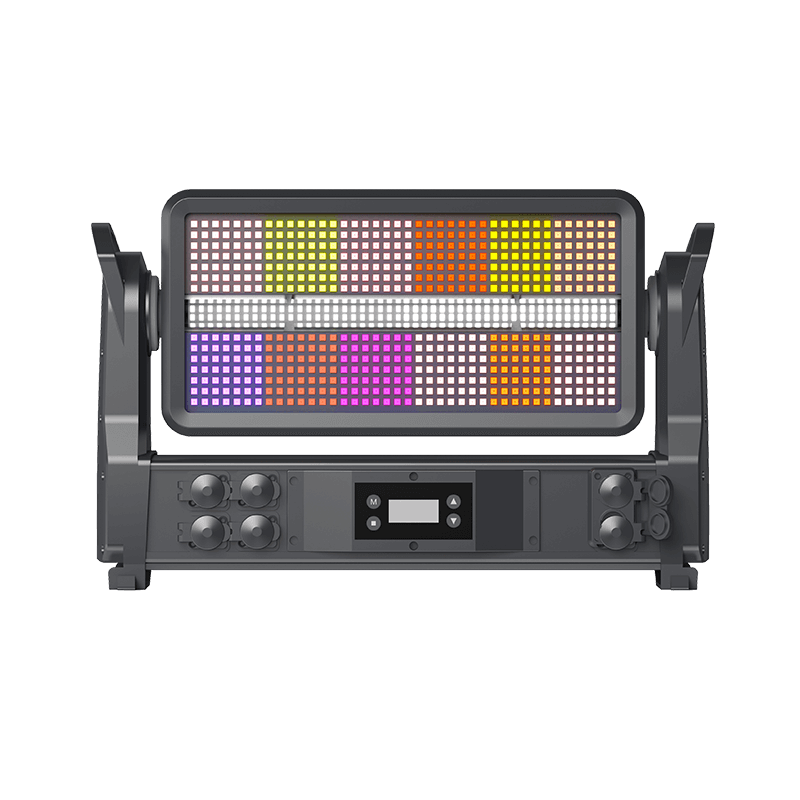

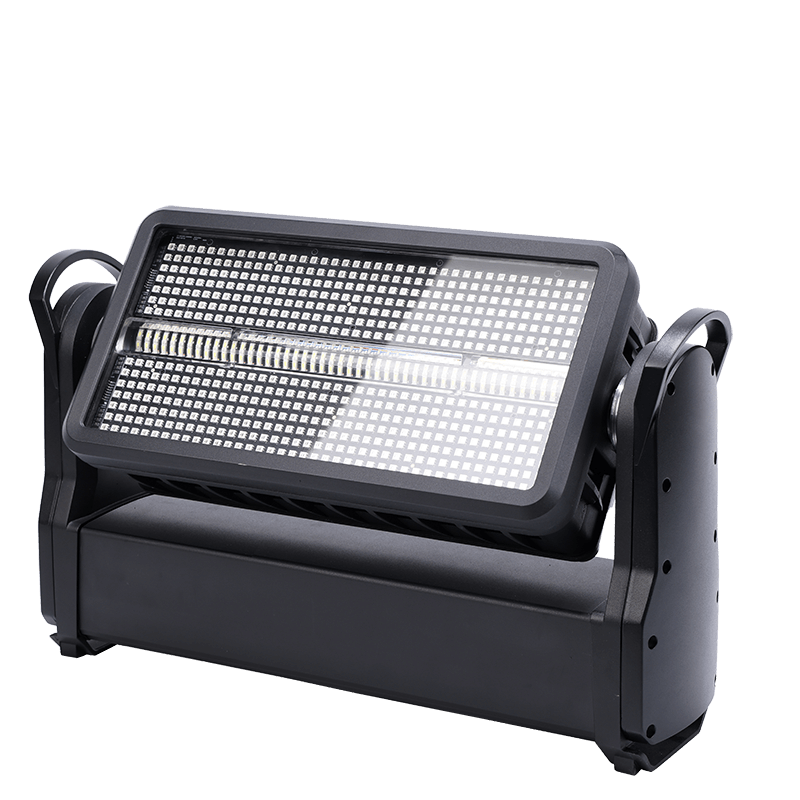

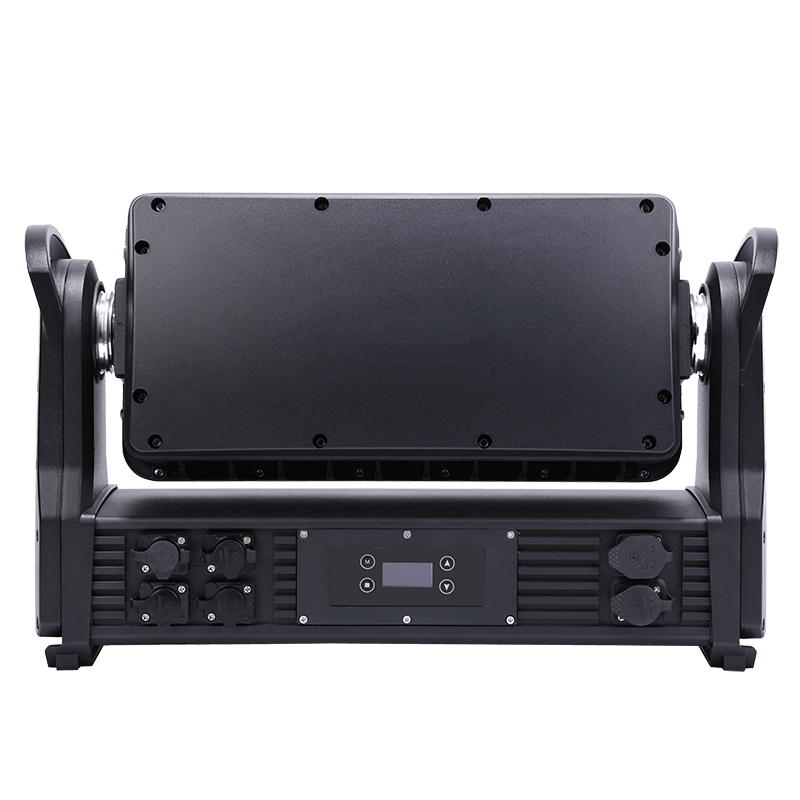

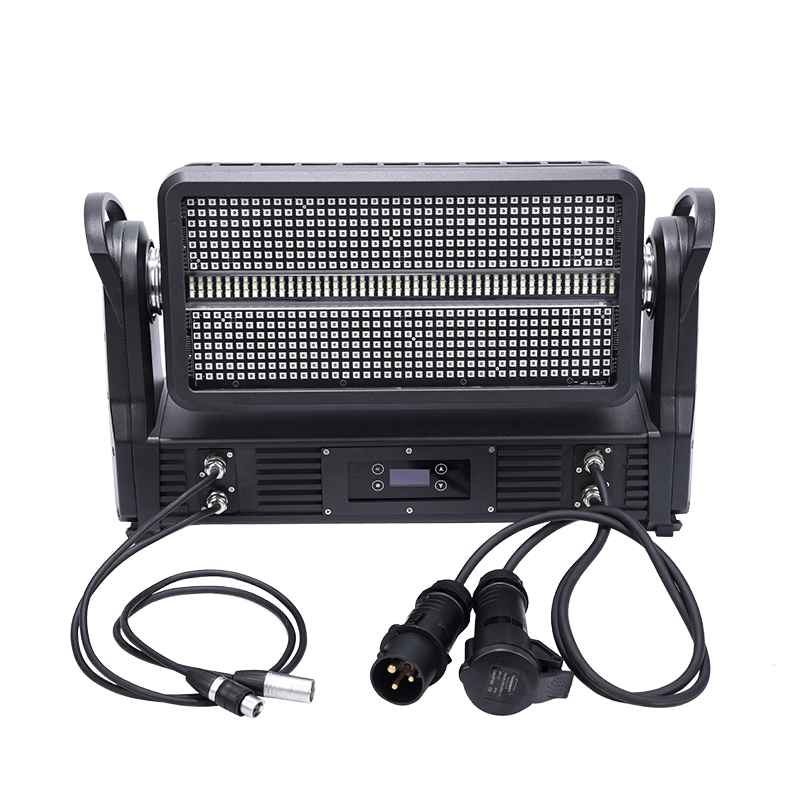

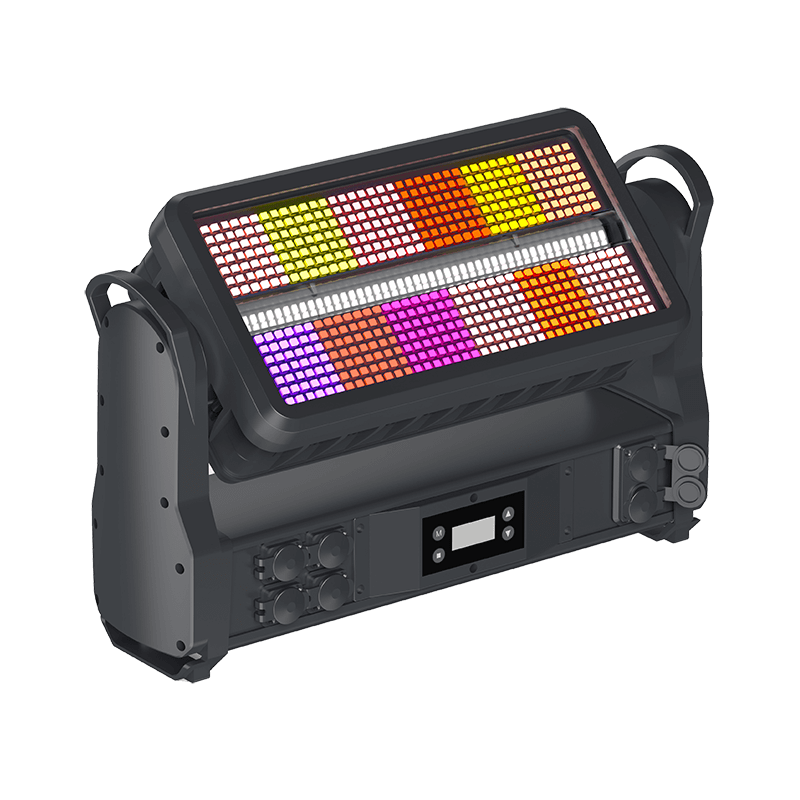

outdoor led moving strobe lights(1000W)
Product Introduction
AZCOLOR LITE CO., Limited is located in Guangzhou City. 1000W outdoor LED moving strobe lights those integrates strobe, wash and pixel 24 segments control functions. LED moving strobe lights, designed with IP65 die-cast aluminum structure, the surface strictly complies with outdoor requirements. Waterproof LED strobe light, with wireless DMX1512 control, supports Ethernet input and output, the product adopts 24-segment control, RGB main smd led 588 x 0.5W RGB, 144 x 5W cool white strobe tube between Tri LED and RGB layout perfectly avoids "holes" in the color eyeballing process and adds an eye-catching LED strobe layer to express its art. The full-color RGB LED is divided into 12 segments, and the white LED is divided into 12 segments. Creative programming is very interesting! The company specializes in providing OEM, ODM, one-stop services for professional performances and performance teams. Welcome Lightning Pro guidance. (moving, strobe, wash, 24-segments pixel control, waterproof, wireless DMX, Ethernet network input and output)
Application areas
Theater and stage lighting, churches, school auditoriums, outdoor lighting rentals, bars and nightclubs, LIVE HOUSE, wedding banquet halls, etc.
Share：
- Item Name: outdoor led moving strobe lights(1000W)
- Item No.: AZ-MH-ST1000-IP
- Input Voltage: AC100-240V/ 50-60Hz
- Power Consumption:1000W
- LED Lighting Source: Strobe Panel LEDs: 588pcs x 0.5W 5050 RGB Tri 3in1 LEDs; LED Segments:12(2 x 6)
- Strobe Tube LEDs: 144pcs 5W 3535 6500K LEDs, Cool-White LEDSegments:12
- Movement Resolution: 8-16 Bit Position， Feedback: yes
- Tilt (Degrees):185°
- Control Modes:23Chs / 14Chs/ 68Chs
- Display: Illuminated graphic LCD
- Protocol: USITTDMX-512,RDM:Bidirectional communication
- Wireless DMX: 2.4GHzW-DMX™ （optional）
- Cooling: Temperature controlled, over heating protection
- Dimmer: 0-100% electronic Shutter: electronic, max. 20 Hz
- Internal Effects: LED Macro Effects
- Signal connection: Seetronic IP65XLR 5-Pinor3-Pin In/Out
- Power Input: Seetronic powerCONTRUE1 In/Out
- Seetronic Ethernet in/out(Optiona)
- Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
- Operating Position: any
- Mounting Options Standing: Rubber feet Hanging: Omega-Bracket
- Safety wire attachment: fold out eyelets
- Single fixture: card board(inner and outer cartons) Tourpack:4-way Flight Case
- Housing Colors: Standard colors: black
- Waterproof Rate: IP65 outdoor use
- Fixture Size: Length:502mm/ 119.8 in; Width:137mm/ 5.4 in; Height(head horizontal):326mm/ 12.8in
- N.W:11.2 kg
- G.W:13.5kg

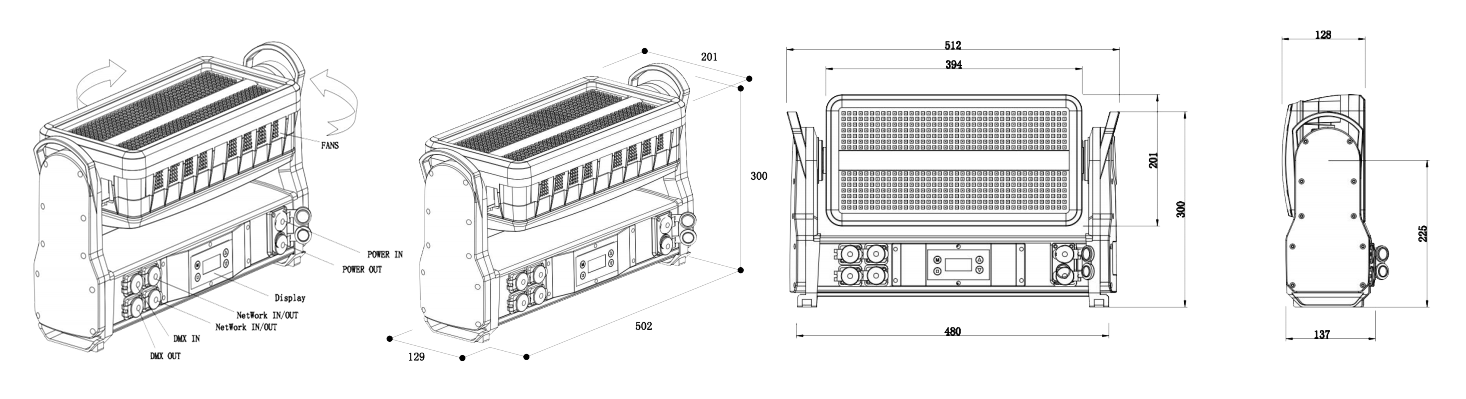

CAD Drawing:
