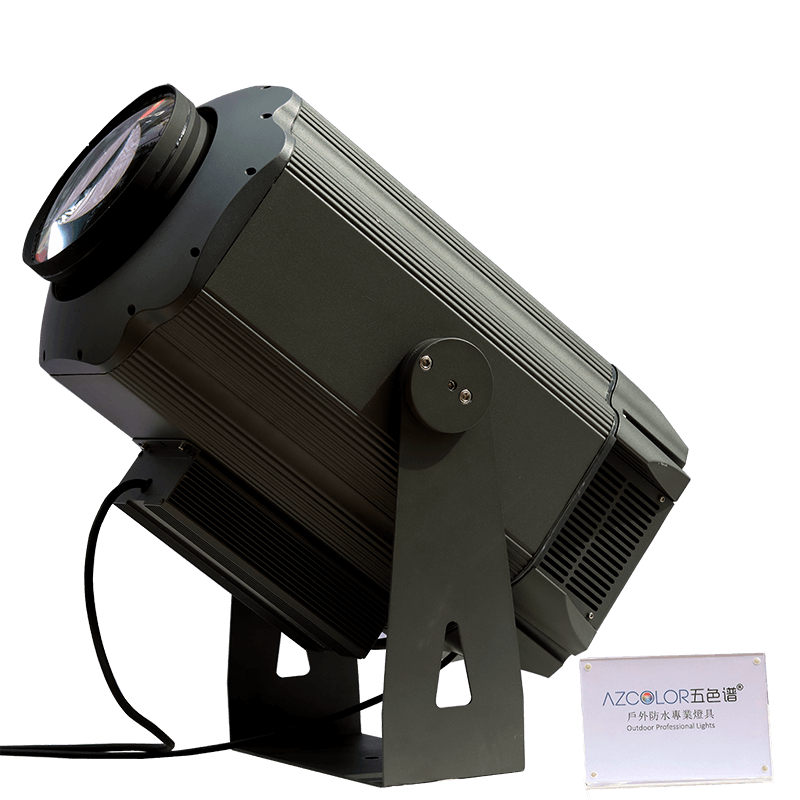

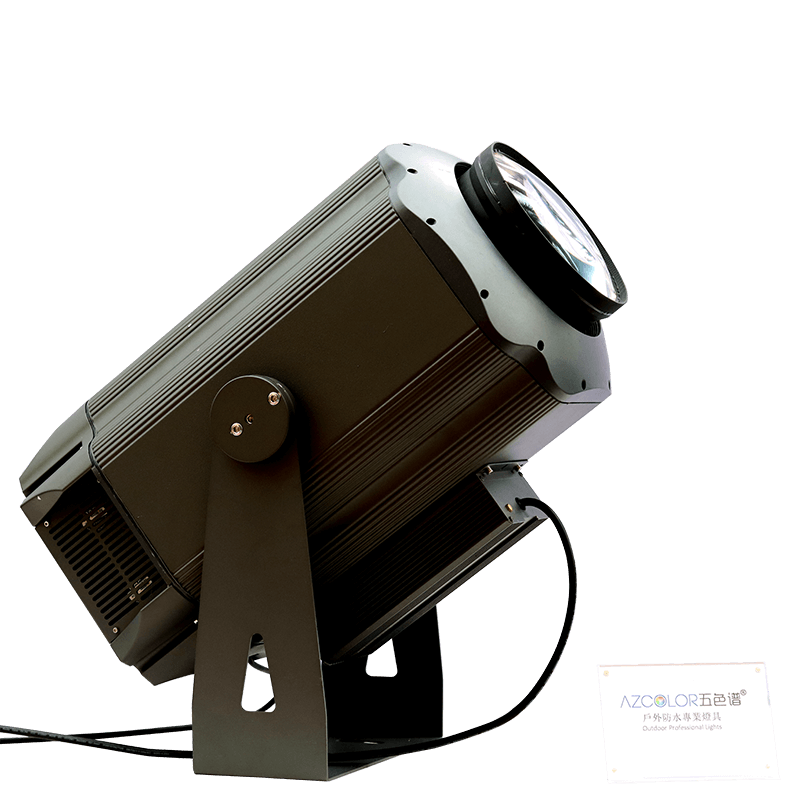

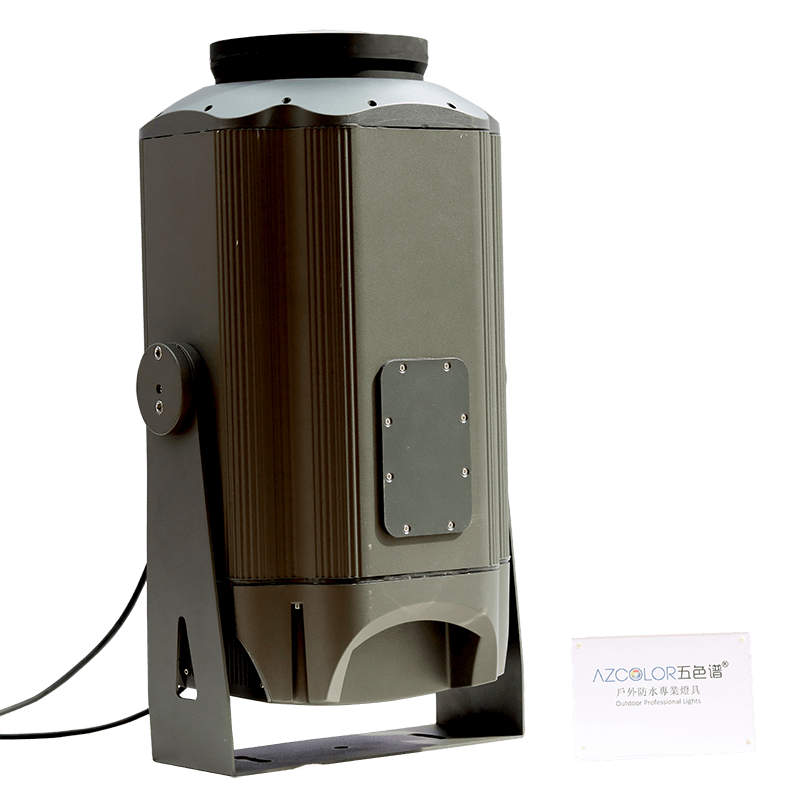

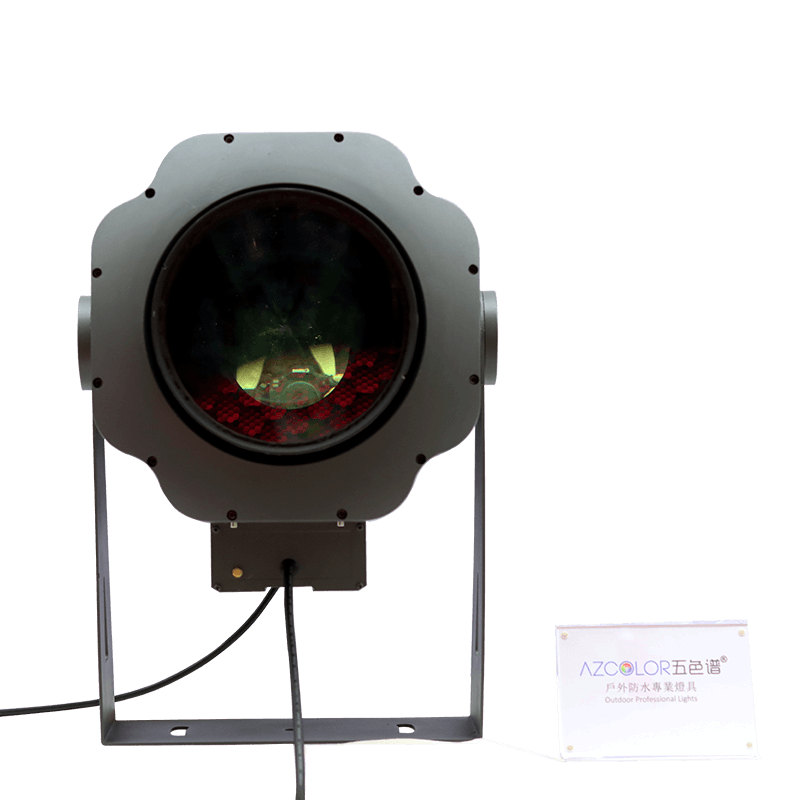

hybrid outdoor 850W led Projector lights
AZCOLOR LITE Co., Ltd., 850W outdoor LED Projection lights, which integrates wash, customize gobo, zoom, CMY, framing(leko) functions, is the most complete lights in outdoor LED projection lights. This waterproof LED pattern projection lights , an outdoor floating shadow light specially designed for outdoor use; the color transition is natural and the color mixing is uniform; the original multi-piece outdoor landscape light image pattern framing function; the 16bit dimming method ensures smooth dimming; supports the international general agreement DMX512, RDM data two-way feedback protocol. The company also provides design and installation one-stop guidance services.
hybrid outdoor 850W led lights Features of profile light:
the original function of multi-piece outdoor landscape lighting cutting sheet can make the landscape more arbitrary and show unique visual effects more simply.
CMY/color wheel optional
CMY features of lights: with independent color mixing function of three primary colors, more color changing effects can be switched.
Lights aperture features: The color change of the lamp adopts the color wheel + CMY three primary colors as the color conversion of the Lighting fixtures.
Lights zoom features: The lamp has a linear zoom function, which can linearly adjust the size and definition of the image, and the longest projection distance can reach 150 meters.
Features of Lights gobo: Built-in multiple pluggable and replaceable projection film devices.
Note: If you use the cutting effect, you cannot choose a double gobo wheel, only one gobo wheel can be selected
- Item Name: hybrid outdoor 850W led projector lights
- Item No.: LD-hy-850-ip
- Input voltage: AC110-240V, 50/60Hz
- Power factor: PFC＞0.96
- Rated power: 850W
- Lighting sources: One pc 800W COB led, Color temperature: 7500K
- Noise decibel: 35dB (0.5m)
- Strobe speed: 1-20Hz/sec
- Zoom Coverage: 5°-50° electronic zoom, electronic focus: 10%-0-10%
- Spot shape: round
- Dimming curve: Level 1
- QTY of channels: 11 channel mode
- Color Wheel: 7 colors + white light or CMY color wheel
- Gobo Wheel: 1 rotating gobo wheel + 6 gobos + open or 2 rotating gobo wheels 12 gobos + open
- Gobo rotation: forward and reverse rotation of one gobo wheel or forward and reverse rotation of two gobo wheels + gobo positioning function
- Effect Prism: a floating shadow disk, which can float left and right, and the floating speed can be adjusted.
- Cutting/leko: four sets of cutting pieces, can be cut into a variety of quadrilaterals.
- Prism effect: Rotate 4 prism effects (customizable prisms)
- Protection function: overheat protection
- Control mode: DMX512/RDM two-way control signal/self-editing manual control system/Other Controls: Offline Autorun
- Adjustment angle: up and down >90°
- Temperature control: real-time monitoring of light source temperature
- Working environment: -25°/+35°
- Display mode: LCD color screen / Chinese and English switching / screen flip
- Signal interface: waterproof interface / XLR male and female interface
- Heat dissipation method: conduction heat dissipation
- Salt spray: Professional outdoor paint, anti-UV and anti-salt spray
- Ventilation: The device has a vent valve vent hole
- Power device: full power overheating protection device
- Shell material: full die-cast aluminum
- Light body material/color: aluminum and die-cast aluminum (professional outdoor paint, anti-UV and anti-salt spray)
- Shade material/color: dark gray （customizable）
- Light outlet: single-entry power cord, waterproof signal interface/XLR male-female interface
- Connection method: hand in hand connection, power in/out, data in/out
- Internal protection: electronic moisture-proof process
- Waterproof Rate: IP65
- Product size: 617x349x448mm
- Net weight: 26KG

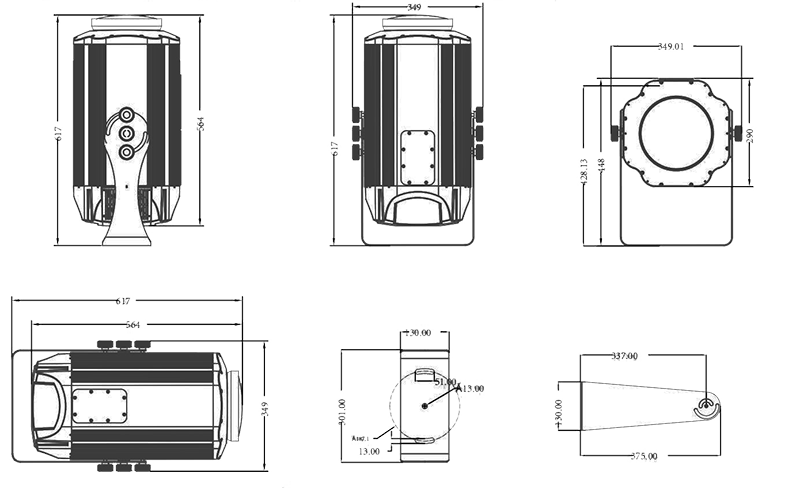

CAD Drawing
