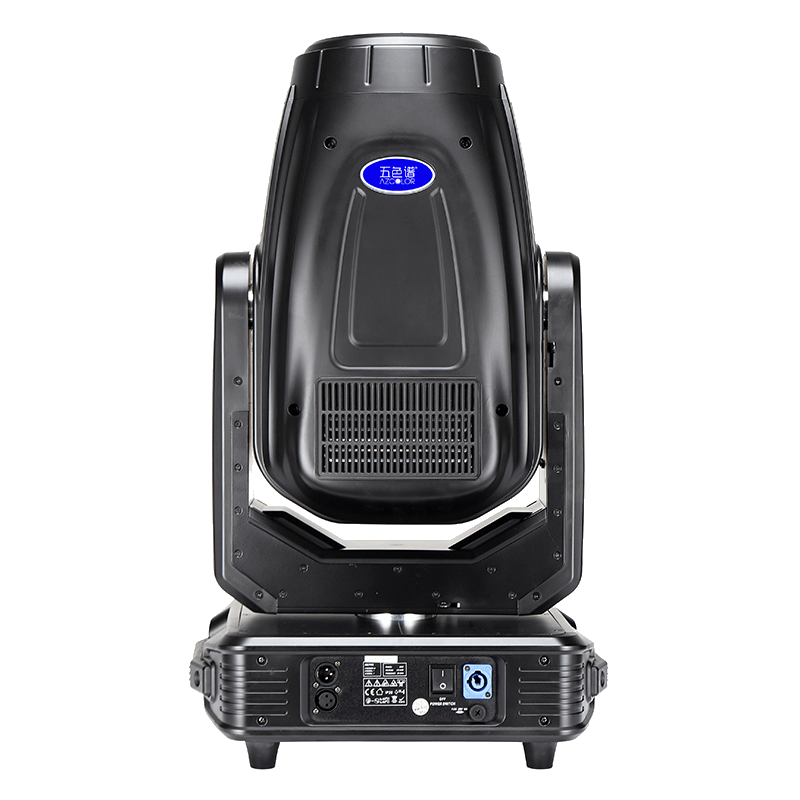

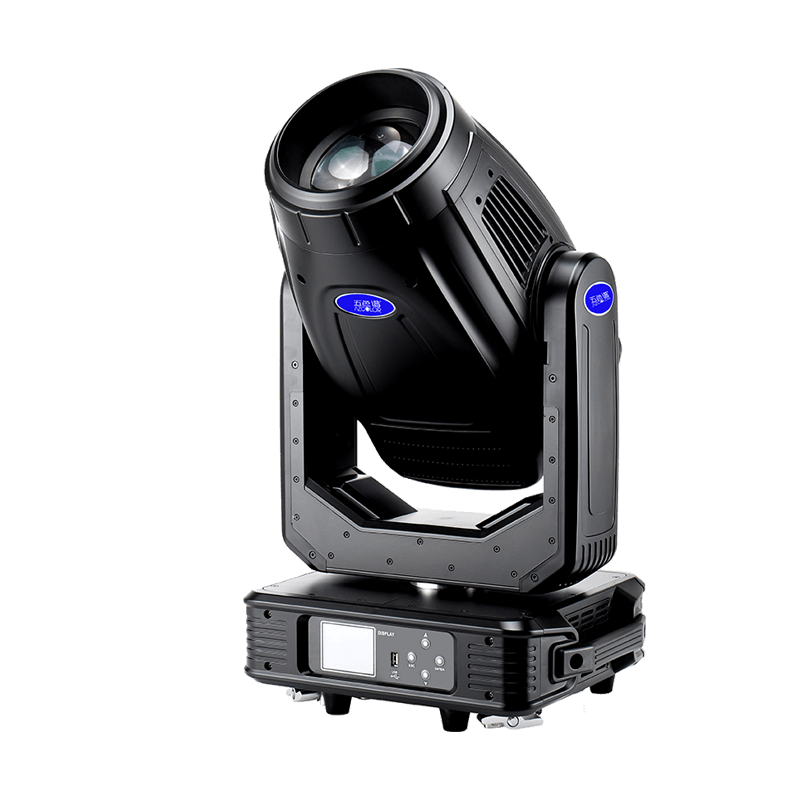

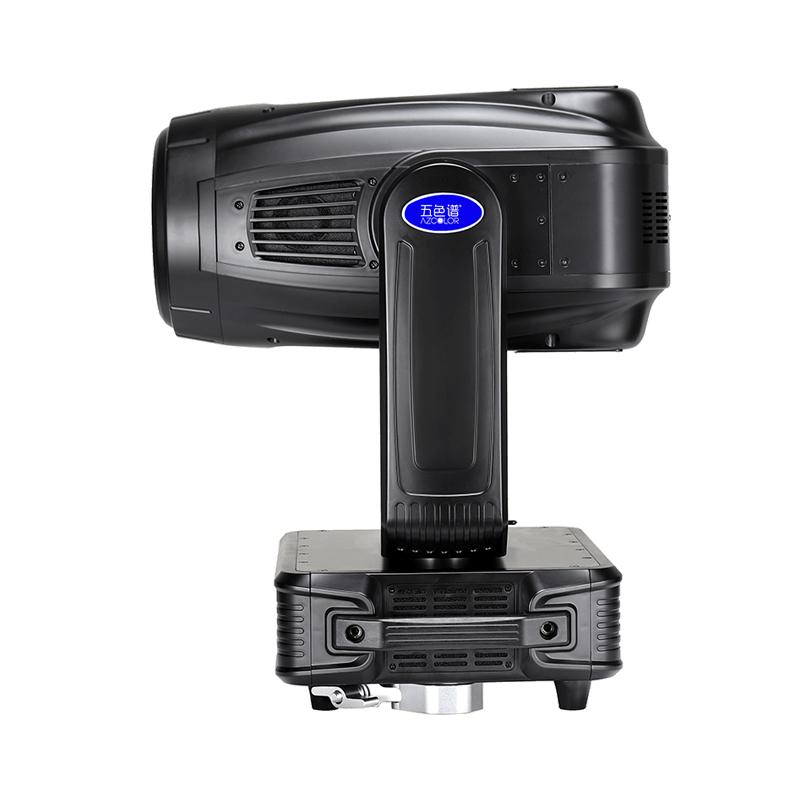

Item Name: 382W Hybrid Moving Heads
-
Item No.: LD-MH-382-BSW
-
Lamp Source:OSRAM SIRIUS HRI 382W
-
Input Voltage: AC110-240V,50/60Hz
-
Rated Power Consumption: 540W
-
Lamp Source life: 2500 hours
-
Color temperature: 7000K
-
Optical System: Advanced optical system, uniform pattern, sharp beam and clear edge.
-
Beam angel: 2.5°~35°
-
Channel Mode: 19CH
-
Fixed GOBO: 13 GOBO +Open
-
Rotation GOBO: 7 GOBO(3-Color pattern)+ Open
-
Rotating GOBO diameter is 22mm, effective diameter is 17mm,, GOBO is thickness 1.1mm.
-
Color Wheels: 13 color +Open
-
Prism Rotation GOBO 1: 8 facet prism
-
Prism Rotation GOBO 2: 6 facet prism,(Rotation GOBO 1 and Rotation GOBO 2 can layer,can zoom)
-
Display: LCD touch screen display, screen display, can reverse 180°
-
Control way: Support DMX512, RDM,automatic run.
-
USB: It supports setting address code in case of no power supply and can be used as external interface for software upgrade.
-
Pan: 540°; 8Bit/16Bit ;
-
Tilt: 270°; 8Bit/16Bit ;
-
XY axis with automatic error correction system.
-
The traditional hall positioning system is replaced by magnetoelectric positioning system.
-
It is not affected by lampblack, dust and natural light, with higher precision and reliable performance.
-
DMX Signal input port: 3 pin or 5 pin
-
With integrated hook
-
Product size: 410x250x690 mm
-
Flight case: 930x520x910 mm
-
Card Carton: 540x450x650 mm
-
N.W: 23 KG
-
G.W: 26 KG( With carton )
