Item Name: Fresnel led moving lights
-
Item No.: AZ-MHF-200
-
Input Voltage: AC90-240V, 50/60Hz
-
Power Consumption: 150W/200W
-
LED Lighting Source: 1pc cob 150W/200W Quad led, or 1pc 200W White cob led
-
Zoom Coverage: 30°~60°/
-
Channel: 11CH/17CH for optional
-
Control mode: DMX512 international protocol/master-slave/sound control/Auto run
-
X Axis: 540 degrees
-
Y Axis: 270 degrees
-
Strobe: 1-25 times/second or random
-
Display: color screen
-
Product Size: 273*255*375mm
-
Net Weight: 5.6kg
-
Packing info One Light carton: 44*34.5*25 cm, 7.5 kg; Two Light carton: 70*45*27 cm, 15 kg

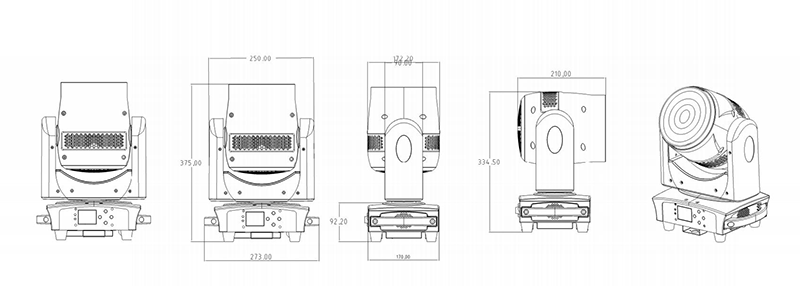

CAD Drawing:
more info:
The Fresnel lens has equidistant teeth on one side of the lens. Through these teeth, light can be focused.
The principle of the Fresnel lens is to use the principle of light interference. When light passes through the Fresnel lens, it will be divided into many beams of light by parallel concave and convex lines. These light rays will converge at the focus of the lens to form a bright light spot.
The focal length of the Fresnel lens can be controlled by adjusting the spacing of parallel concave and convex lines. The smaller the spacing of parallel concave and convex lines, the shorter the focal length of the lens.
The Fresnel lens has the advantages of short focal length, high luminous flux, light weight, less material used, and easier to construct a large focusing device.
The glass Fresnel lens is resistant to high temperatures and is suitable for stage lights or spotlights.
Name
Glass Fresnel lens.
Glass Fresnel.
Function
Light focusing, high luminous flux, light weight.
Application:
Lighting, stage lighting.
